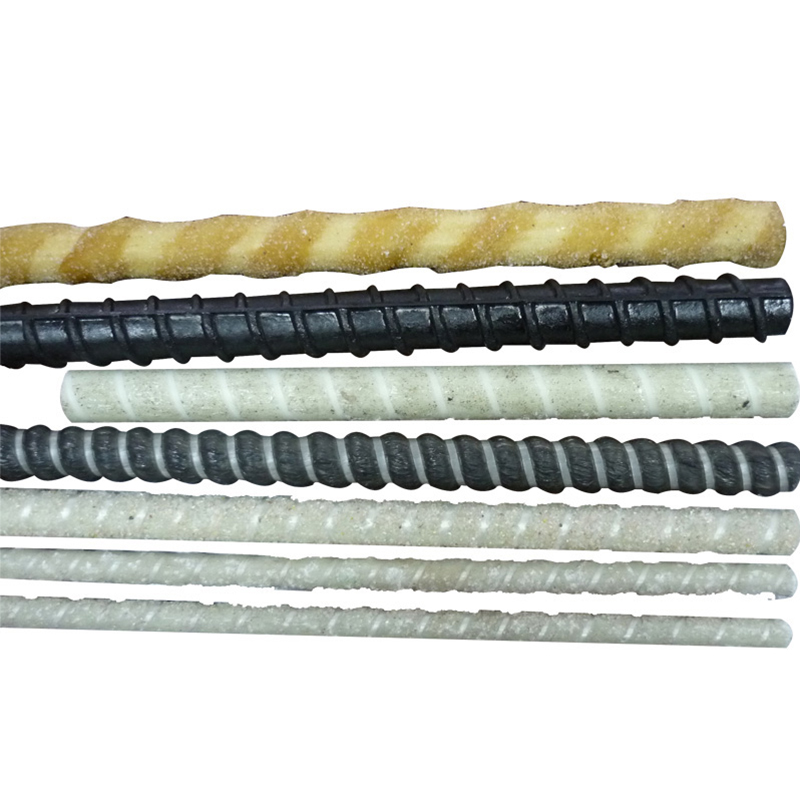

Fiberglass Rebar

Fiberglass (Fiberglass Reinforced Plastic) rebar is made of high strength glass fibers along with an extremely durable resin. Developed as a superior alternative to steel in concrete reinforcement, FRP Rebar is used to reinforce concrete in applications where concrete is exposed to water, salt water, or chemical environments.

Available dimension: Typical diameter 16, 18, 20, 22, 24mm

Application:

■ Surface strengthening of road, bridge, road, marine, etc, station, water project, under-earth project, etc;

■ A corrosive environment like sewage project, chemical plant, manhole and coast defense project;

■ Electro and magnetic environments like military engineering, confidential project and other special



Advantages:

■ Non-Corrosive – will not corrode exposed to a wide variety of corrosive elements including chloride ions.

■ High Strength-to-Weight Ratio – provides good reinforcement in weight sensitive applications.

■ Non-Conductive – provides excellent electrical and thermal insulation.

■ Excellent Fatigue Resistance – performs very well in cyclic loading situations.

■ Good Impact Resistance – resists sudden and severe point loading.

■ Magnetic Transparency – not affected by electromagnetic fields; excellent for use in MRI and other types of electronic testing facilities.

■ Light Weight – easy to be transported, no need for lifting equipment, saving high machine and manual cost.

We supply below three kinds of fiberglass rebar:

1.Rock Bolt Rebar(support/joint system):

2. FRP Rock bolt and accessories

3. Rock Bolt rebar used in mining

Available dimension: Typical diameter 16, 18, 20, 22, 24mm

Application: Rock reinforcing underground like mining, sub-way, etc

Thread  Rebar(reinforcement system):

Available dimension: 3-40mm
