Can u use fiber glass rebar in verticle structures? Guide

Introduction

Imagine a 20‑story residential tower on a salty coastline. Five years after opening, the steel‑reinforced columns in its parking podium already show rust blooms. Maintenance crews scramble, owners worry—and engineers ask a simple question: can u use fiber glass rebar in verticle structures instead? Glass‑fiber‑reinforced polymer (GFRP) promises corrosion immunity and lighter lifts, but vertical members face unique compression and buckling demands. This article walks purchasing managers, specifiers, and site supervisors through the data, codes, and practical know‑how needed to decide. As a global FRP supplier, Wellco Industries supports customers with certified testing, in‑house pultrusion, and one‑stop logistics, adding real‑world insight to the discussion.

Understanding Fiberglass Rebar and Vertical Loads

Unique Properties of GFRP vs. Steel

Fiberglass rebar weighs four‑to‑five times less than steel while matching—or exceeding—its tensile strength (~1,000 MPa ultimate). Unlike steel, it never corrodes, conducts no electricity, and is transparent to magnetic fields—ideal near MRI suites or utility substations. The trade‑off is a lower elastic modulus (≈70 GPa versus 200 GPa for steel), which affects stiffness in short, heavily loaded columns.

Mechanics of Vertical/Axial Loading

Vertical elements such as columns endure compression, bending from lateral drift, and risk of buckling. Because GFRP’s compressive strength is roughly 60 % of its tensile strength, engineers must check combined axial–bending limits and confinement ties more carefully than with steel. Modern design guides, however, show that well‑detailed GFRP cages perform safely when axial load ratio is ≤0.35 f’c Ag.

Structural Performance Evidence

Lab Data on Compressive Capacity & Modulus

A 2024 meta‑analysis of 11 peer‑reviewed studies reported GFRP‑reinforced columns reaching 80–90 % of their predicted capacity, with ultimate axial strains under 1.8 %. One test at the University of Sherbrooke recorded no bar failure after 10 million load cycles, simulating elevator shaft vibrations.

Field Case Study: 6‑Story Parking Garage Columns*

In 2019, a mid‑Atlantic developer retrofitted a six‑story precast parking deck with GFRP‑caged columns to curb de‑icing salt damage. Five winter seasons later, ultrasonic scans show zero section loss and carbonation depth under 5 mm. The project manager notes, “We’ve spent nothing on patch repairs—maintenance savings already offset the 12 % material premium.”

*Project location anonymized at owner’s request.

Design Codes & Engineering Guidance

ACI 440.1R, CSA S806, Draft Eurocode Provisions

The American Concrete Institute’s ACI 440.1R‑23 recommends a minimum longitudinal reinforcement ratio of 1.2 % for compression members and a strength‑reduction factor φ = 0.55 under axial load. Canada’s CSA S806 allows slightly higher φ when confinement hoops are placed at ≤150 mm spacing. Eurocode draft prEN 1992‑10 proposes similar safety factors plus a 2‑hour equivalent fire cover calculation.

Step‑by‑Step Design Example for a Concrete Column

Design brief: 400 mm × 400 mm column, 6‑m unbraced length, carrying 1,200 kN axial plus 75 kN‑m moment.

1. Calculate factored load using ACI 1.2D + 1.6L → 1,800 kN.

2. Select bar size/area. Four #8 (25 mm) GFRP bars give 1.25 % ρl—above code minimum.

3. Check slenderness: kL/r = 24 < 34 (OK).

4. Compute interaction ratio per ACI 440 Appendix C → 0.83 < 1.0 (safe).

5. Specify hoops: 10 mm GFRP stirrups @ 140 mm with plastic spacers for clear cover.

Installation & Job‑Site Best Practices

Handling, Tying, and Splicing GFRP Vertically

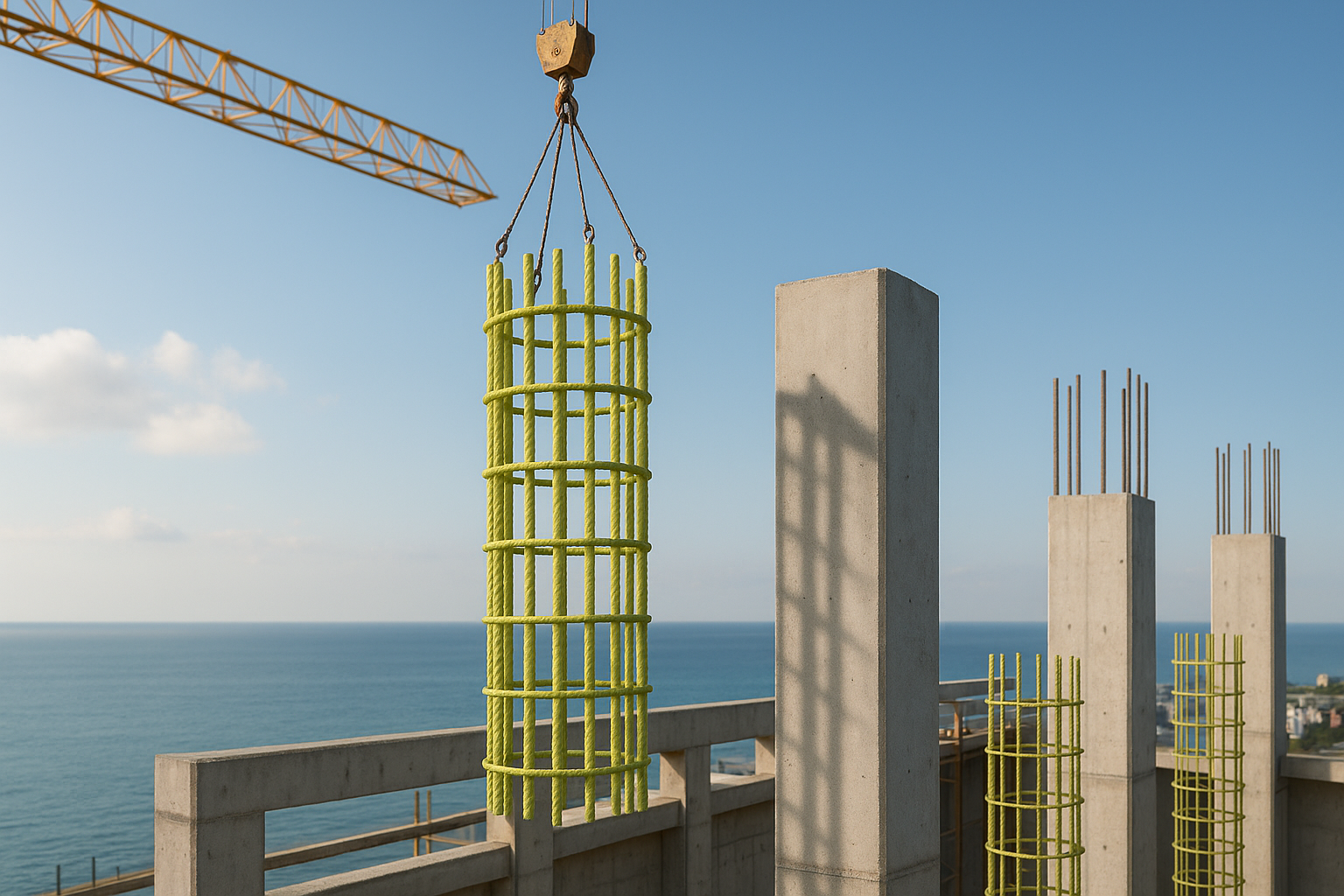

Because composite bars snap rather than yield, avoid field bending; order pre‑formed cages. Use nylon cable ties or proprietary plastic clips—steel wire can cut fibers. For vertical lifts, standard rebar couplers are replaced with threaded GFRP sleeve splices tested to 1.4 × design load. Tag cages clearly so crane operators know the lighter load; one crew reported a 25 % faster set cycle after the switch.

Cost & Schedule Advantages in High‑Rise Construction

• Labor reduction: Workers can hand‑carry bar bundles up formwork ladders, eliminating extra hoist time—10 % labor savings in a 2023 São Paulo office tower.

• Crane efficiency: A 500‑kg cage becomes 120 kg; smaller lifts free up tower‑crane capacity for other tasks.

• Reduced repairs: No on‑site coating or galvanizing touch‑ups.

Decision Framework: When GFRP Is the Right Choice

Ideal Use Cases

• Coastal piers and pile‑supported marinas

• Water‑treatment clarifier walls and digesters

• MRI or data‑center foundations needing non‑magnetic reinforcement

• Precast tilt‑up panels where weight limits transport loads

Situations Where Steel Still Wins

• Columns in petrochemical plants exceeding 400 °C design fire temps

• Very short pedestals where stiffness, not durability, governs

• Structures requiring post‑installed mechanical anchors drilled through rebar

Choosing a Reliable Supplier

Technical Support & Testing Certifications to Demand

Ask for ISO 9001 quality management, ICC‑ES evaluation reports, and batch‑level glass transition temperature (Tg) certificates. On‑site training for installers and peel‑ply bar samples for trial pours indicate a supplier committed to your project’s success.

Wellco Industries’ Integrated FRP Supply Chain

Wellco controls every step from glass roving to pultrusion and sand‑coating, then bundles accessories like erosion‑control blankets or landscape stakes in the same shipment. “We’re not just selling bar; we’re solving material logistics for contractors,” says a Wellco materials engineer. Global distribution warehouses in Houston, Rotterdam, and Qingdao keep lead times within three weeks.

Conclusion

Fiberglass rebar makes vertical concrete elements lighter to lift and immune to chloride attack—provided engineers respect its lower stiffness and follow ACI 440 or CSA S806 guidance. With field evidence mounting and suppliers like Wellco Industries offering certified material plus design tables, the answer to can u use fiber glass rebar in verticle structures is a confident yes for many coastal, corrosive, or electromagnetic‑sensitive projects. Ready to compare specs or request a fast quote? Reach out to the Wellco team today.

Frequently Asked Questions

Q1: Does fiberglass rebar satisfy U.S. building codes for columns?
Yes. ACI 440.1R and several state DOT standards allow GFRP in compression members when designers apply the recommended strength‑reduction factors and reinforcement ratios.

Q2: How does GFRP perform in fire compared with steel?
Composite bars lose stiffness faster above 250 °C. Meeting a 2‑hour rating usually means adding 10–15 mm extra concrete cover or a fire‑protection wrap.

Q3: Can I cut or bend fiberglass rebar on site?
Cutting with a diamond blade is fine; bending is not. Always order factory‑made bends or segmented cages joined with sleeve couplers.

Q4: What is the typical price premium over epoxy‑coated steel?
Material cost runs 10–20 % higher, but many owners recoup it through reduced crane time and zero corrosion repairs within the first decade.

Q5: Are special ties or spacers required?
Use plastic or composite ties; avoid bare steel wire that can damage fibers. Standard plastic wheel spacers work well for cover control.
